Double Glazed Partitioning Parts

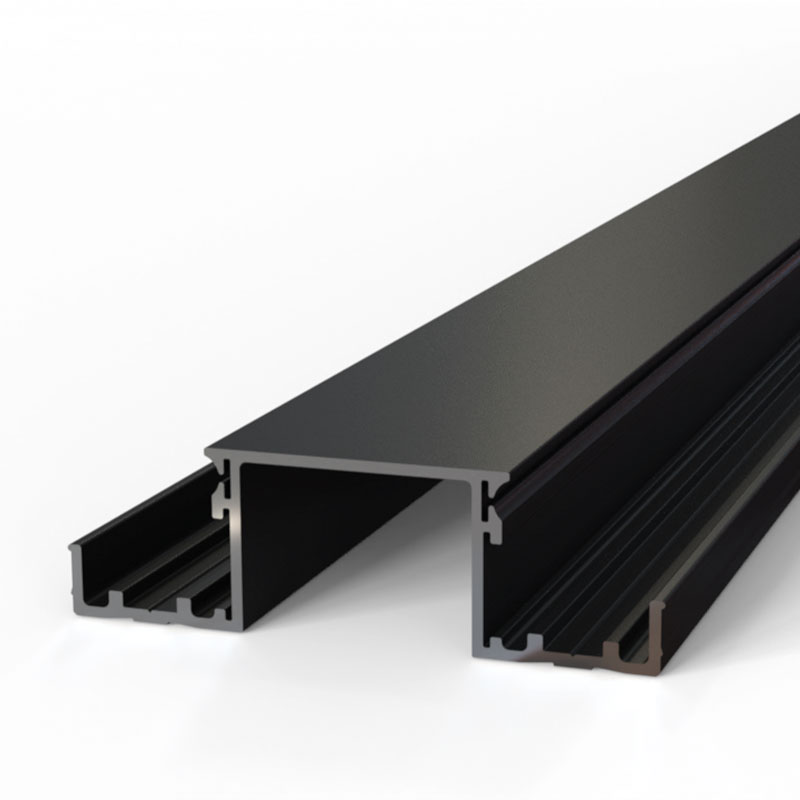

SDG7040 – Double glazed Floor section

Our double glazed base section, this accepts 2 x SDG7045 base beads, can be used with glass from 6mm to 12.8mm and comes pre gasketed ready to use.

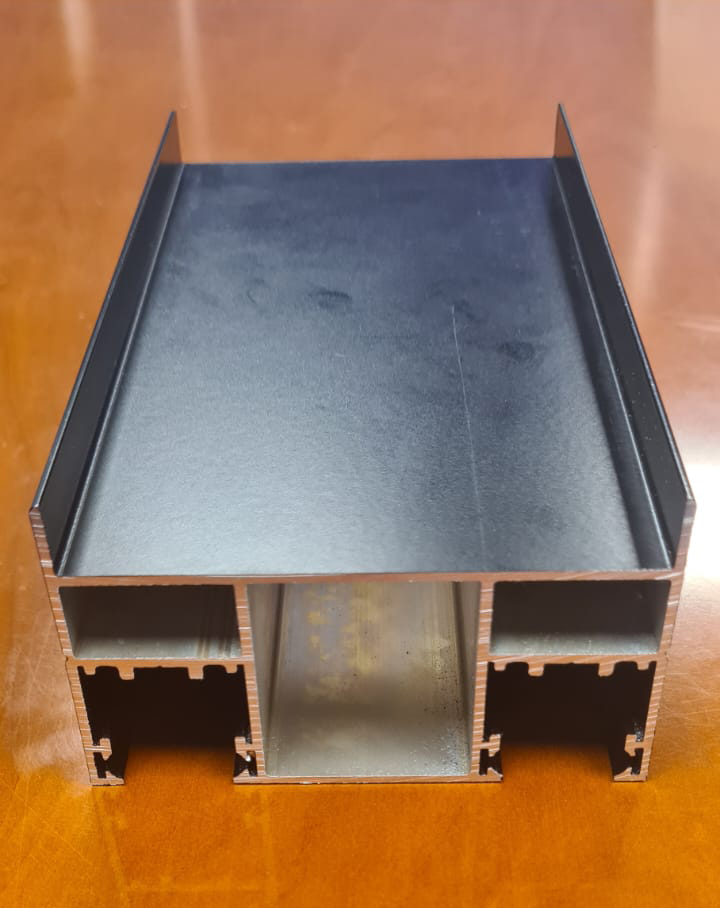

SDG7031 & SDG010 – Double Glazed Compensator

A 2 piece kit that comes pre gasketed ready to use, can be used with glass from 6mm to 12.8mm, this set is used where there is an uneven ceiling, as a deflection head system.

SDG7021 – Double glazed door frame

Can be used in a double glazed partition system or as a stand alone door frame in an aperture for a one off door. A beautiful robust section designed to give years of no nonsense service, The hinges for this frame sit inside the frame and not seen, can be used with glass doors, and timber doors to 44mm, comes as a kit with legs and head cut to size and mitred, and all fixing brackets, acoustic seals, hinges, and lock box aka strike plate.

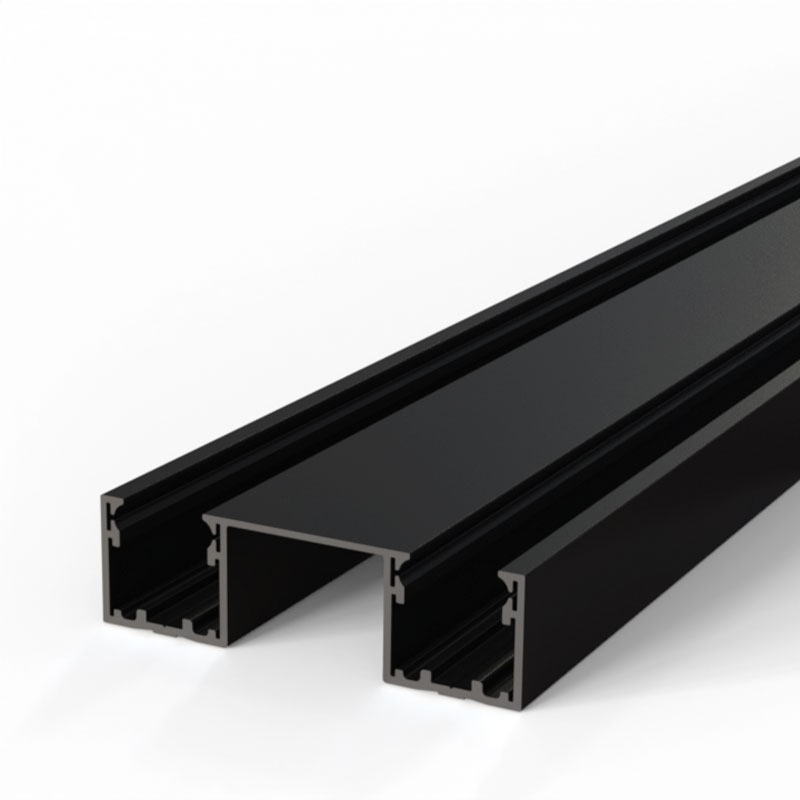

SDG7030 – Double glazed head and wall section

Designed to screw to walls and ceilings to provide 3 sides of a 4 sided screen, accepts various sizes of glass and comes pre gasketed ready to use.

Single and Double Glazed Partitioning Parts

SSG1207 – Industrial / Critall Style banding

Very popular this part just sticks to your glass with our SIG/CRITTALTAPE tape to create the industrial style banding that the portioning world is currently going mad for.

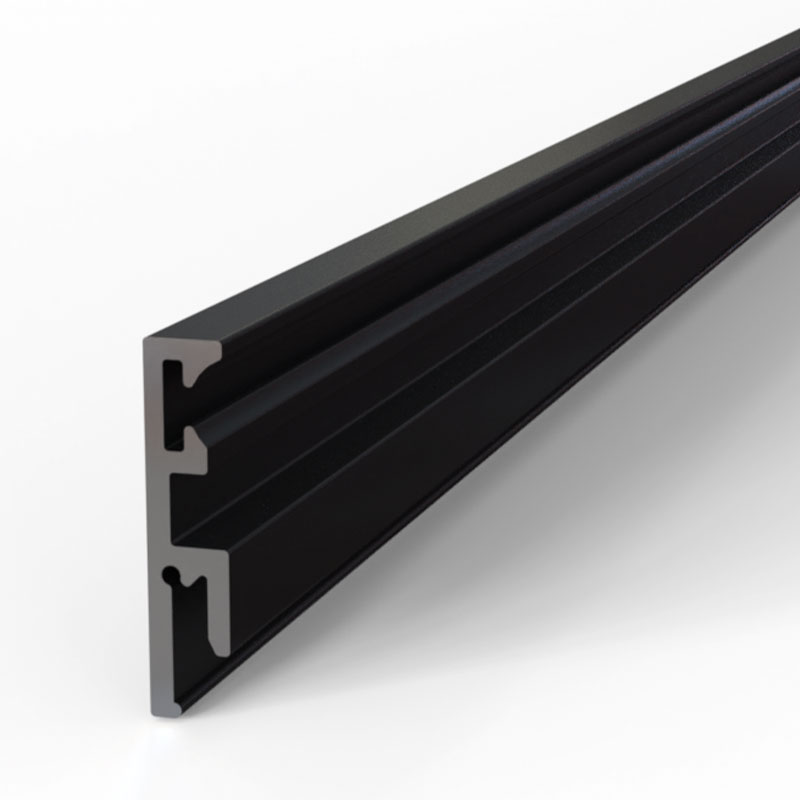

SDG 7045 – Base bead

This snaps into place on the single glazed base SSG1201 and the double glazed SDG7030, it completes a 3 sided channel and glass is secured with a choice of bubble gaskets suited to the size of glass being used, this part also comes pre gasketed.

SSG 1240 – Infill section

This slots into the top of the single glazed head and wall section, and creates a 4 sided box section for cosmetic purposes
